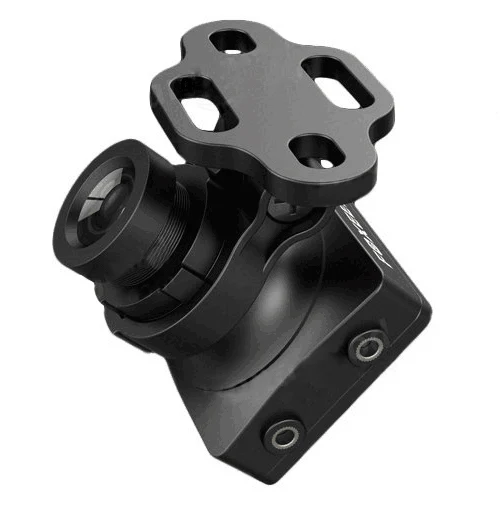

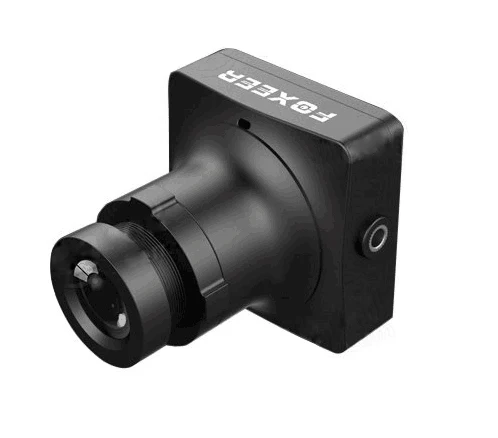

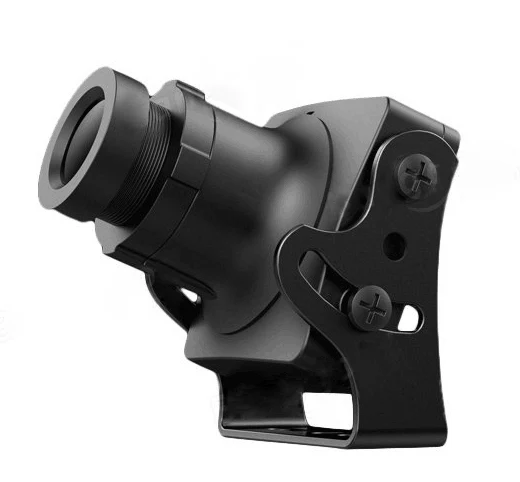

★Foxeer HS1190 Arrow 2.8mm 600TVL CCD OSD NTSC-PAL IR Block-IR Sensitive FPV Camera w- Bracket
1 / 3
★Foxeer HS1190 Arrow 2.8mm 600TVL CCD OSD NTSC-PAL IR Block-IR Sensitive FPV Camera w- Bracket
Brand Name: Foxeer
Model: HS1190
WDR: D-WDR
S/N: 52dB
Weight: 4.5g
Type: Arrow
Auto Gain: auto
White Balance: auto
System: NTSC/PAL
Sensor: CCD
Horizon Resolution: 520TVL
Sensitivity: 0.008Lux/F1.2
Working Current: 60mA
Input Voltage: DC 5V-24V
Temperature: - 10℃~+50℃
Backlight Compensation: auto
Video Output: 1.0V p-p/75ohm
Scan System: 2:1 interlaced scan
Lens and Angle: 0.5mm F2.0 /100°
Size (L x W x H): 11.8 x 11.8 x 24.5mm
Sensor Size: 4.75mm(H)×3.55mm(V)
Pixel: NTSC:656(H)×492(V)/PAL:786(H)×576(V)
Image Singal Processing: digital image processing system
Digital Shutter: AUTO (1/60 S TO 1/100000 S)/OUT (1/50 S TO 1/100000)S
Select Color
From $18.86
Original: $53.88
-65%★Foxeer HS1190 Arrow 2.8mm 600TVL CCD OSD NTSC-PAL IR Block-IR Sensitive FPV Camera w- Bracket—
$53.88
$18.86Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Brand Name: Foxeer
Model: HS1190
WDR: D-WDR
S/N: 52dB
Weight: 4.5g
Type: Arrow
Auto Gain: auto
White Balance: auto
System: NTSC/PAL
Sensor: CCD
Horizon Resolution: 520TVL
Sensitivity: 0.008Lux/F1.2
Working Current: 60mA
Input Voltage: DC 5V-24V
Temperature: - 10℃~+50℃
Backlight Compensation: auto
Video Output: 1.0V p-p/75ohm
Scan System: 2:1 interlaced scan
Lens and Angle: 0.5mm F2.0 /100°
Size (L x W x H): 11.8 x 11.8 x 24.5mm
Sensor Size: 4.75mm(H)×3.55mm(V)
Pixel: NTSC:656(H)×492(V)/PAL:786(H)×576(V)
Image Singal Processing: digital image processing system
Digital Shutter: AUTO (1/60 S TO 1/100000 S)/OUT (1/50 S TO 1/100000)S
